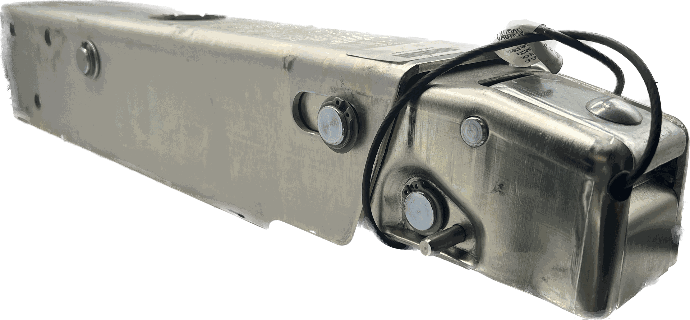

Dexter / Titan Aero Model, 7,500# Capacity Drum Brake Actuator, For 2" Ball (4500600)
SKU: 068-150-00
TITAN / DICO Aero 7500 Drum Brake Actuator (Dexter Part #068-150-00)
Zinc plated finish 'In-Line' style hydraulic actuator with a rated capacity: 7500 lbs. (750 lbs. tongue weight) for DRUM brake applications.
Unique 'Torsion Handle' spring ball latch mechanism allows for secure tow ball hook-up with extra durability.
Mounting holes are 3" on center front to back.
The lockout switch on this actuator lets you deactivate your trailer brakes so that you can back up with ease.
Features:
Hydraulic actuator synchronizes trailer brakes with tow-vehicle brakes.
Manual reverse lockout lets you reverse without actuating your trailer's brakes.
Easy-to-use lever activates lockout.
Zinc plating is corrosion resistant.
Breakaway hook and cable kit included.
Bolt-on installation (1/2" dia holes).
Specs:
Application: Drum Brakes Ball size: 2" Mounting: 3" wide channel tongue Capacity: 7,500 lbs Maximum tongue weight: 750 lbs 1-Year warranty
Titan part number 4500600
Zinc plated finish 'In-Line' style hydraulic actuator with a rated capacity: 7500 lbs. (750 lbs. tongue weight) for DRUM brake applications.
Unique 'Torsion Handle' spring ball latch mechanism allows for secure tow ball hook-up with extra durability.
Mounting holes are 3" on center front to back.
The lockout switch on this actuator lets you deactivate your trailer brakes so that you can back up with ease.
Features:
Hydraulic actuator synchronizes trailer brakes with tow-vehicle brakes.
Manual reverse lockout lets you reverse without actuating your trailer's brakes.
Easy-to-use lever activates lockout.
Zinc plating is corrosion resistant.
Breakaway hook and cable kit included.
Bolt-on installation (1/2" dia holes).
Specs:
Titan part number 4500600
