Deemaxx Disc Brake Kit, 10" Rotor / Hub Style, Fits 1-3/8" x 1-1/16" Spindles (3,500 lbs. - 3,750 Lbs. Axles) 5 X 4.5" Bolt Pattern, Maxx Coating Finish (1 Wheel End Kit)
SKU: 1/DBI-3.5K-MAXX-KIT
DEEMAXX Disc brake caliper with MAXX coating. Includes slider pins and non-asbestos ceramic brake pads.
Integral 10" hub and rotor (one piece), 5 lug on 4.5" wheel bolt pattern
Caliper bracket mounts to 4 bolt brake flange on your axle and fits inside 13" and larger wheels
MAXX Coated caliper and caliper bracket (MAXX plating, during a standard salt spray test, will only begin to form rust at 1008 hours)
Vented rotor with additional vent holes in the hub cavity to help dissipate heat
3-Year MAXX warranty
DEEMAXX now offers a 7-year workmanship & materials warranty on galvanized, MAXX coated, and stainless steel parts!* The best warranty in the industry!
*Some conditions and exclusions apply. Please visit https://deemaxx.com/warranty-statement/ for details.

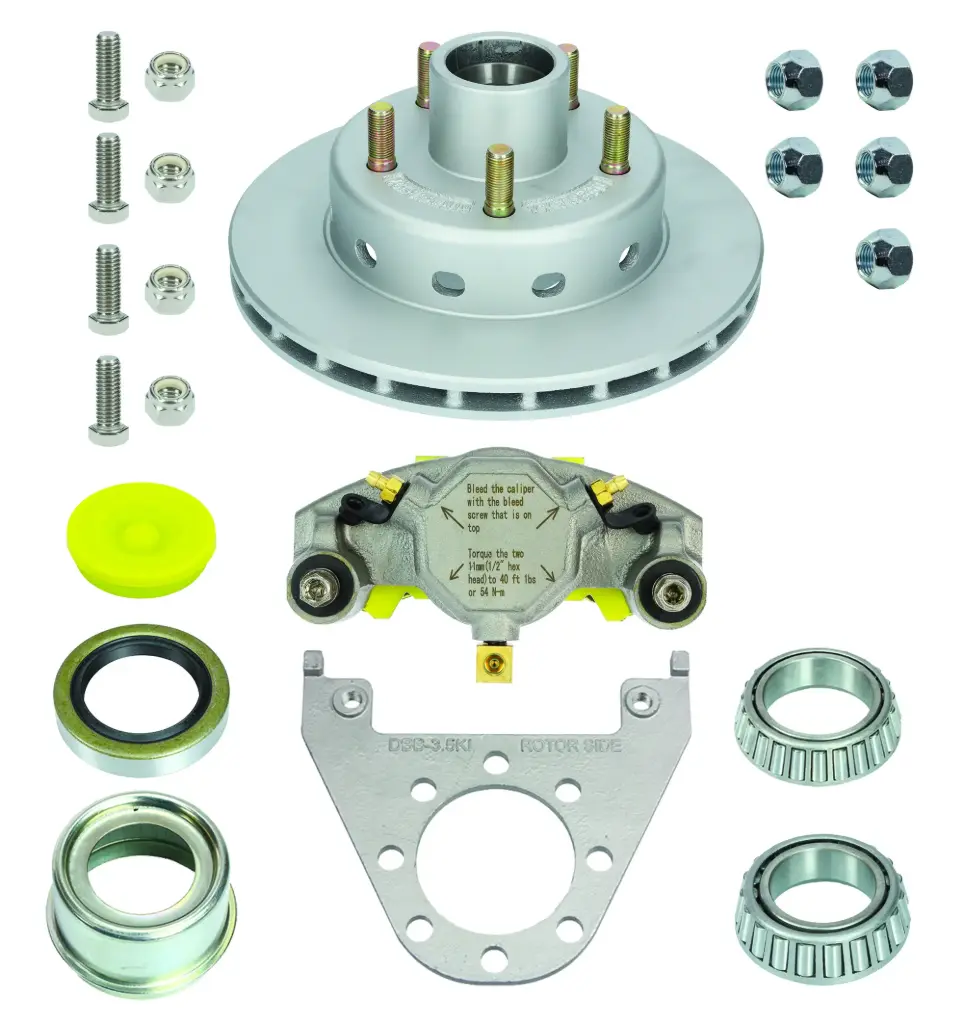

Contents Included:
- (1) Rotor/Hub
- (1) Caliper (Including slider pins)
- (1) Mounting Bracket
- (1) Outer 1-1/16" Bearing 44649
- (1) Inner 1-3/8" Bearing 68149
- (1) Lubed Dust Cap
- (1) Double Lip Seal, 1.72″ ID, 2.565″ OD
- (4) Bracket Mounting Bolt, SS, 7/16″-14 x 1-1/4″
- (4) Bracket Mounting Nut, SS, Nylock, 7/16″-14
- (5) Lug Nut, 1/2"-20
- (1) Dust Cap Silicone Plug
