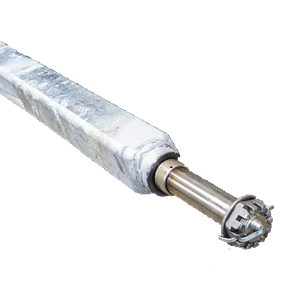

Spring Axle, 2,000 lb Capacity, 2" Square Tube, 51-1/8" Hub Face, Adjustable Spring Center, 56" Overall Length, Galvanized, Manufactured by Dexter (Formerly Tie-Down)

Specs:

Axle Type: Spring Axle

​​Weight Capacity: 2000 lbs

​​Hub Face: 51-1/8"

​​Spring Center: Adjustable

Overall Length: 56"

​​Drop: None

​​Spindle Size: 1-1/16" x 1-1/16"

Finish/Material: Galvanized

​​Includes Brake Flange: No

​​Tube Shape/Size: 2" square tube

​​Includes Hubs: No

Brand/Manufacturer: Tow Zone Axles by Dexter (Formerly Tie-Down)

SuperLube Lubrication
This Axle's Spindle is equipped with Dexter's SuperLube Lubrication System. The bearings can be periodically lubricated without removing the hubs from the axle. The advantage to this system is that new grease saturates the inner bearing and outer bearing while pushing out the old grease, unlike systems that just push new grease on top of old grease.
1. Remove the rubber plug from the grease (hub) cap.
2. Use a standard grease gun onto the grease fitting located at the end of the spindle, making sure the grease gun nozzle is engaged on the fitting tightly.
3. Pump grease into the fitting, while slowly turning the wheel. Grease will flow out of the hub around the spindle.
4. When the grease appears to be the new clean grease, remove the grease gun and wipe off any excess grease.
5. Replace the rubber plug in the cap.



All Tow Zone Axles are proudly made in the USA!
