Torsion Axle, 3,750 lb Capacity, 67.5" Frame Center, 85" Hub Face, 72" Outside Bracket, 22.5* Down Starting Angle, Galvanized, Manufactured by Dexter Marine Products

Specifications

Axle Type: Torsion Axle

Weight Capacity: 3,750 lbs

Hub Face: 85"

Frame Center: 67.5"

Outside Bracket: 72"

Starting Angle: 22.5*

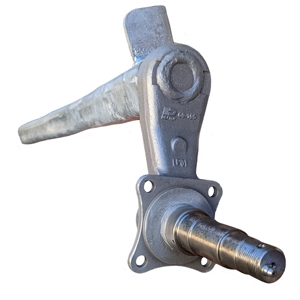

Spindle Size: 1-3/8" x 1-1/16" (Standard w/Super-Lube zerc fitting)

Finish/Material: Galvanized

Includes Brake Flange: No

Removeable Spindles or Trail Arm: Removable Spindles with Torsion Arms

Includes Hubs: No

Brand/Manufacturer: Dexter Marine Products, Model: Eliminator

Alternate Part #: N/A

Inner Bearing #: L68149

Fits Sportline Trailer and others.

*****HUBS NOT INCLUDED*****

SuperLube Lubrication
This Axle's Spindle is equipped with DMP’s SuperLube Lubrication System. The bearings can be periodically lubricated without removing the hubs from the axle. The advantage to this system is that new grease saturates the inner bearing and outer bearing while pushing out the old grease, unlike systems that just push new grease on top of old grease.
1. Remove the rubber plug from the grease (hub) cap.
2. Use a standard grease gun onto the grease fitting located at the end of the spindle, making sure the grease gun nozzle is engaged on the fitting tightly.
3. Pump grease into the fitting, while slowly turning the wheel. Grease will flow out of the hub around the spindle.
4. When the grease appears to be the new clean grease, remove the grease gun and wipe off any excess grease.
5. Replace the rubber plug in the cap.



All Dexter Axles are proudly made in the USA!
