3,500# Trailer Axle, Capacity, 93" Hub Face, 97.5" Oal. 2" Galvanized Square Tube *


SKU: 50276

359.41 359.41 USD 433.03


Not Available For Sale

    This combination does not exist.

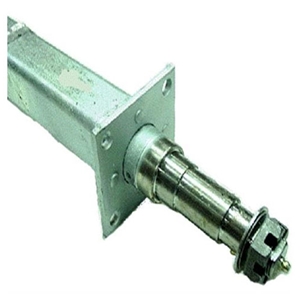

    2" Square Trailer Axle 3500 lbs
    Hot dipped galvanized 1/4" square stock .
  • Spring Centers not drilled. See add-on spring seat 19070G and U-Bolt tie plate kit (longer lengths available-check measurement of your existing u-bolts) Note: 1/2" longer axle U-bolt may be needed when spring seats are used)
  • Axle Type: 2" x 2" Square - Straight with brake flanges
  • Load Rating: 3500 lbs.
  • OAL: 97.55"
  • Track Length: 93"
  • Spring Center: Per your specs
  • Spindle Size: 1-3/8" x 1-1/16" (Standard with Super-Lube zerc fitting)
  • Inner bearing #L68149 outer bearing #L44649
    Tie Down Part # 50276: Trailer Running Gear, Axles & Hardware, Tow Zone Axles by Tie Down
  • Similar Venture Part#20019

    SuperLube Lubrication
    This Axle's Spindle is equipped with TDE’s SuperLube Lubrication System. The bearings can be periodically lubricated without removing the hubs from the axle. The advantage to this system is that new grease saturates the inner bearing and outer bearing while pushing out the old grease, unlike systems that just push new grease on top of old grease.
    1. Remove the rubber plug from the grease (hub) cap.
    2. Use a standard grease gun onto the grease fitting located at the end of the spindle, making sure the grease gun nozzle is engaged on the fitting tightly.
    3. Pump grease into the fitting, while slowly turning the wheel. Grease will flow out of the hub around the spindle.
    4. When the grease appears to be the new clean grease, remove the grease gun and wipe off any excess grease.
    5. Replace the rubber plug in the cap.

    All Tow Zone Axles are proudly made in the USA!
