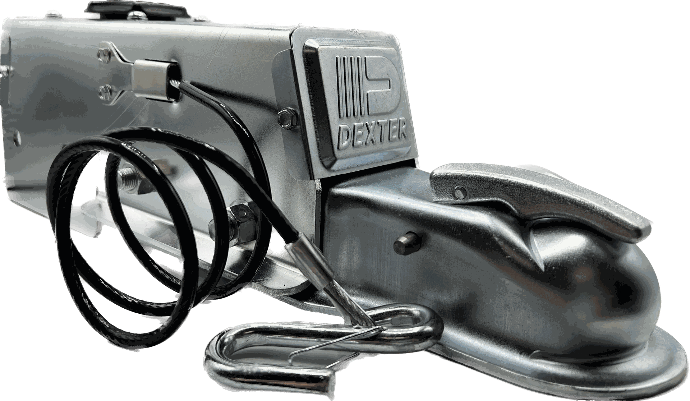

Dexter Marine Products Model 660, 6,600# Capacity Drum Brake Actuator, For 2" Ball (Replaces Tie Down Model 660)

TIE DOWN Model 660 Drum Brake Actuator
Hydraulic Surge Brake Actuator 6600 LB GVWR Capacity, 660 Lbs Tongue Load Zinc Plated, 2" Ball, Bolt On. Fits 3" Wide Tongues.
Drum brake replacement actuator.
Cast Steel Latch Handle – Stronger, lays flatter, better looking.
Quick Lock 2” Coupler –Coupler in closed position will auto lock on the hitch ball.
Aluminum Master Cylinder – Corrosion resistant.
Cast Steel Ball Clamp – Stronger than stamped steel.
Safety Pin Locks the Coupler to the Ball – Coupler stays locked to the hitch ball even if the latch is damaged.
Grease Fittings on Roller Pins – Consumer can grease rollers easily, longer life, better operation.
Dampener Built In and Pre-loaded – no need to load dampener before bleeding the brakes.

660 lbs Tongue Load

1/2" Dia Mounting Holes are 3" on Center Front to Back

Frame size 3"

2" Ball

Wide mouth master cylinder – Easier to add brake fluid

Common filler cap on all actuators – Easier to maintain spare parts

E-stop cable coiled PVC coated cable – Keeps cable from getting in the way

PVC coated galvanized cable offers a smooth finish for handling and corrosion resistance

Zinc Plated for Excellent Corrosion Resistance

Model 660 was manufactured after March 2012. Model 66 was prior number.

Fits Venture Trailers Part #10201
