Ufp Torsion Arm Kit 1-3/8"X1-3/8" Spindle 4.2K
SKU: K71-068-00
UFP by Dexter # 33223 Torsion Axle trailing arm replacements.
Works with all 4200lb capacity UFP Trailer Buddy torsion axles.
Fits Torsion Axle beams that are 3" x 3" and have 1 3/8" inner bearing (L68149) and 1 3/8" outer bearing (L68149) .
4-Bolt Brake Flange integrated into trailer arm.
Mounts easily to desired position by splines that allow for ride height adjustment.
Torsion arm is plated for longer life

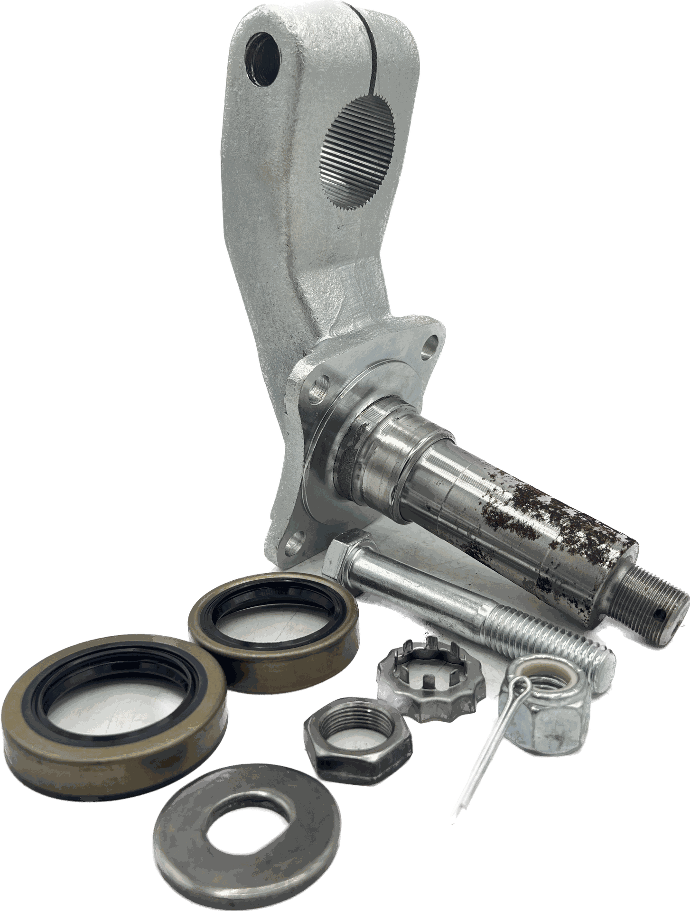

Kit Includes:
1 - Torsion Arm and Spindle, Zinc Plated
1 - Bolt 5/8"x4", Zinc Plated
1 - 5/8" NyLock Nut, Zinc Plated
1 - 5/8" Flat Washer, Zinc Plated
1 - Cotter Pin 1/8"x1-5/8"
1 - 13/16" Spindle nut
1 - Spindle "D" Washer
1 - Spindle Nut Retainer
1 - Seal 2.56"x1.68" for New Axles
1 - Seal 2.33"x1.68" for Older Axles
See add ons below for Hubs and Disc Brake Rotors
.
Works with all 4200lb capacity UFP Trailer Buddy torsion axles.
Fits Torsion Axle beams that are 3" x 3" and have 1 3/8" inner bearing (L68149) and 1 3/8" outer bearing (L68149) .
4-Bolt Brake Flange integrated into trailer arm.
Mounts easily to desired position by splines that allow for ride height adjustment.
Torsion arm is plated for longer life
Kit Includes:
1 - Torsion Arm and Spindle, Zinc Plated
1 - Bolt 5/8"x4", Zinc Plated
1 - 5/8" NyLock Nut, Zinc Plated
1 - 5/8" Flat Washer, Zinc Plated
1 - Cotter Pin 1/8"x1-5/8"
1 - 13/16" Spindle nut
1 - Spindle "D" Washer
1 - Spindle Nut Retainer
1 - Seal 2.56"x1.68" for New Axles
1 - Seal 2.33"x1.68" for Older Axles
See add ons below for Hubs and Disc Brake Rotors
.
